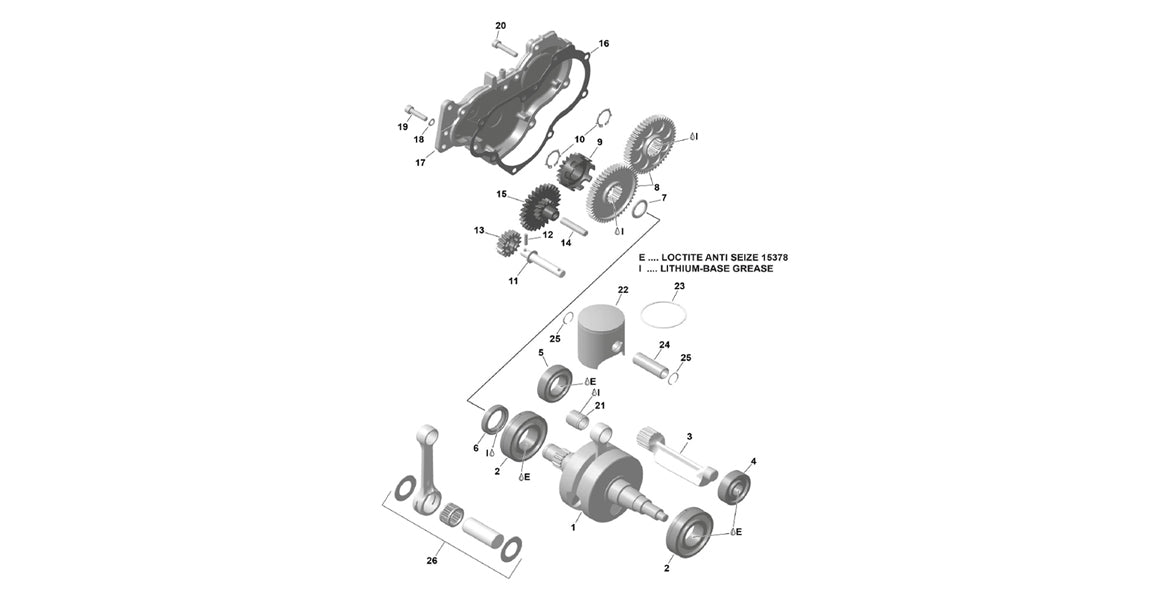

Rotax Max Crankshaft, Piston & Counterbalance Parts, 1. 685098 Rotax Max Crank Shaft Assembly, 3. 237948 Rotax Max Counter Balance Shaft, 7. 430460 Rotax Max O-Ring 18x3.5, 8. 234435 Rotax Max Balance Shaft Gear 50 tooth, 9. 635850 Rotax Max Water Pump Gear 19 tooth, 10. 945664 Rotax Max Retaining Snap Ring 20x1.2, 11. 827590 Rotax Max Thrust Washer for Shaft, 12. 232732 Rotax Max Dowel Pin 4x15.8, 13. 234415 Rotax Max Water Pump Pinion Gear 16 tooth, 15. 634035 Rotax Max Idle Gear 28 / 13 tooth, 16. 650476 Rotax Max Side Cover Case Gasket, 17. 211876 Rotax Max Counter Balance Gear Side Cover, 18. 230415 Rotax Max Gasket Sealing Ring M6x10, 19. 840866 Rotax Max M6x25 Allen Bolt, 20. 840888 Rotax Max M6x30 Allen Bolt, 21. 932027 Rotax Max Needle Cage Bearing Wrist Pin Bearing 15x19x20, 22-23. 295509 Rotax Max Piston Assembly 53.92, 22-23. 295510 Rotax Max Piston Assembly 53.93, 22-23. 295511 Rotax Max Piston Assembly 53.94, 22-23. 295512 Rotax Max Piston Assembly 53.95, 22-23. 295513 Rotax Max Piston Assembly 53.96, 22-23. 295514 Rotax Max Piston Assembly 53.97, 22-23. 295515 Rotax Max Piston Assembly 53.98, 23. 215548 Rotax Max Piston Ring Only, 24. 216135 Rotax Max Piston Wrist Pin, 25. 945635 Rotax Max Piston Circlip, 26. 685011 Rotax Max Connecting Rod Assembly
