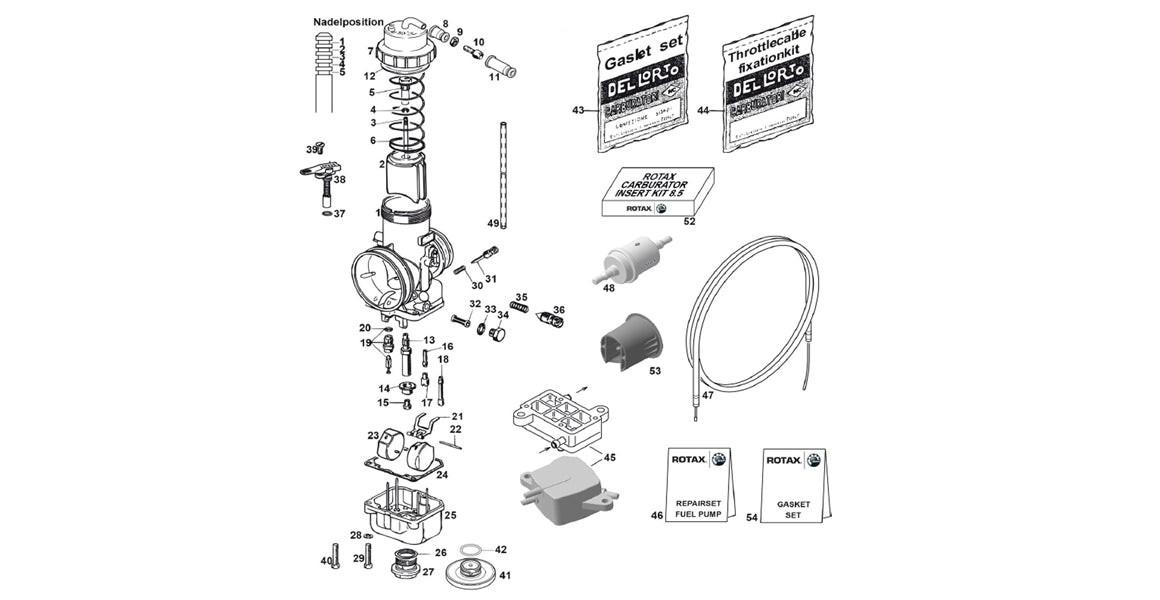

Rotax Max Dellorto Carburetor Parts, 1. 295998 Rotax Max Dellorto Carburetor VHSB34, 2. 262030 Rotax Carburetor Slide 40, 3. 261190 Rotax Carburetor Needle Jet K27, 3. 261192 Rotax Carburetor Needle Jet K57 (Standard), 3. 261191 Rotax Max Carburetor Needle Jet K98, 4. 245630 Rotax Max Carburetor Adjustable Needle Clip, 5. 261270 Rotax Max Carburetor Nipple Screw for Slide, 6. 239885 Rotax Max Carburetor Throttle Valve Return Spring, 7. 261427 Rotax Carburetor Cover with Bent Tube, 8-11. 268040 Rotax Max Carburetor Throttle Cable Fixation Kit, 12. 293834 Use Gasket Set 293834 (41) Rotax Max Carburetor Gasket Kit, 13. 262040 Rotax Max Carburetor Needle Jet FN266, 13. 262042 Rotax Max Carburetor Needle Jet DP 267, 14. 261550 Rotax Max Carburetor Main Jet Cup, 15. 281476 Rotax Main Jet Kit (7 Jets) - 115/118/120/122/125/128/130, 15. Rotax Max Main Jet Kit (6 Jets), 15. Rotax Max Main Jet Kit (5 Jets), 15. Rotax Max Main Jet, Individual 102-131, 15. Rotax Max Main Jet, Individual 132-180, 15. Rotax Max Main Jet, Individual 182-200, 15. 281476 Rotax Max Micromax Main Jet Kit (7 Jets), 16. 261165 Rotax Max Carburetor Idle Jet Insert 60, Standard, 16. 261162 Rotax Max Carburetor Idle Jet Insert 30, Optional, 17. 261341 Rotax Max Carburetor Idle Jet 60, Standard, 17. 261163 Rotax Max Carburetor Idle Jet 30, Optional, 18. 261895 Rotax Max Carburetor Starting Jet 60, 19. 261880 Rotax Max Carburetor Needle Valve Inlet and Seat 150, 20. Use Gasket Set 293834 (41) Rotax Max Carburetor Gasket Kit, 21. 261290 Rotax Max Carburetor Float Bracket Fulcrum Arm, 22. 229271 Rotax Max Carburetor Float Pin, 23. 268031 Rotax Max Carburetor Float 3.6g, 23. 268032 Rotax Max Carburetor Float 4.0g, 23. 268030 Rotax Max Carburetor Float 5.2g, 24. D12693 Rotax Max Carburetor Float Bowl Gasket, 26. Rotax Use Gasket Set 293834 (41) Rotax Max Carburetor Gasket Kit, 27. 261373 Rotax Max Carburetor Float Drain Plug Screw, Wrench Style, 28. 845312 Rotax Max Lock Washer for Carburetor Float Bowl, 29. 262020 Rotax Max M5x20 Allen Screw for Float Bowl, 30-31. 268044 Rotax Max Carburetor Adjustment Screw Kit, 32-34. 268042 Rotax Max Carburetor Fuel Sieve Kit, 37. Rotax Use Gasket Set 293834 (41) Rotax Max Carburetor Gasket Kit, 38. 261915 Rotax Max Carburetor Choke Lever Assembly, 39. 240505 Rotax Max M4.5x10 Countersunk Bolt for Carburetor Choke, 40. 240184 Rotax Max M5x20 Allen Screw for Float Bowl, Drilled for Tech Seal, 41. 261030 Rotax Max Carburetor Drain Plug Screw, Hand Removal, 42. 230890 Rotax Max O-Ring for Hand Removal Float Bowl Drain, 43. 293834 Rotax Max Carburetor Gasket Set, 44. 268040 Rotax Max Carburetor Throttle Cable Fixation Assembly, 45. 994483 Rotax Max Mikuni Fuel Pump OEM Rotax, 45. Rotax Max Mikuni Fuel Pump, Aftermarket, 45. 994487 Rotax Max Fuel Pump Dellorto, 46. 296165 OEM Rotax Max Mikuni Fuel Pump Gasket Rebuild Kit, 46. Rotax Aftermarket Mikuni Fuel Pump Gasket Kit, 47. 297122 Rotax Max Carburetor Throttle Cable Assembly with Housing, 48. 274161 Rotax Max Plastic Inline Fuel Filter, 49. 260260 Rotax Carburetor Air Vent Hose 160mm, 53. 267536 Rotax Max Carburetor Intake Restrictor, 54. 296167 Rotax Max Dellorto Fuel Pump Rebuild Kit, 281820 Rotax Max 12.5 Carburetor Diffusor, 251790 Rotax Micromax Fixation Plate, MSG262000 Rotax Carb Atomizer Spray Nozzle, 8mm, 251730 Rotax Micromax Carburetor Stop Sleeve
