(407) IAH-04000 IAME KA100 Exhaust Pipe

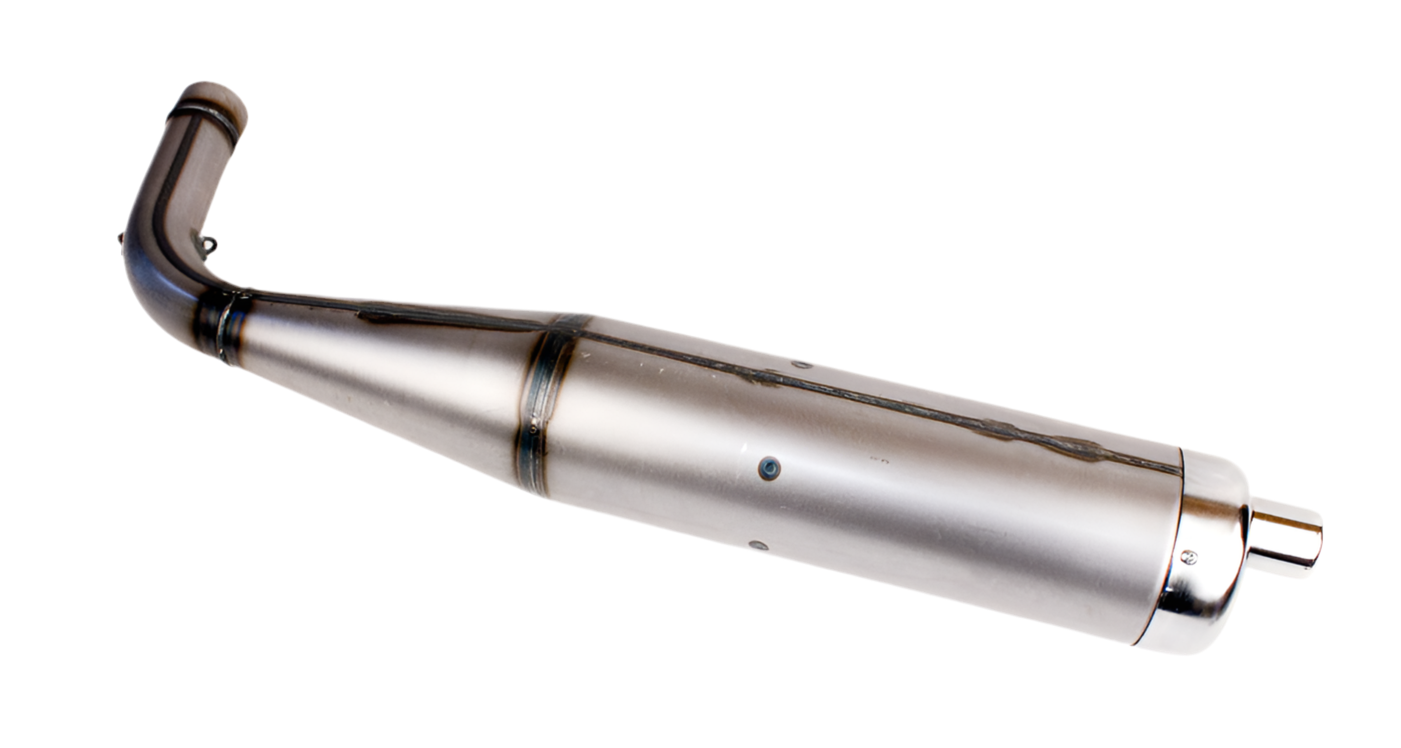

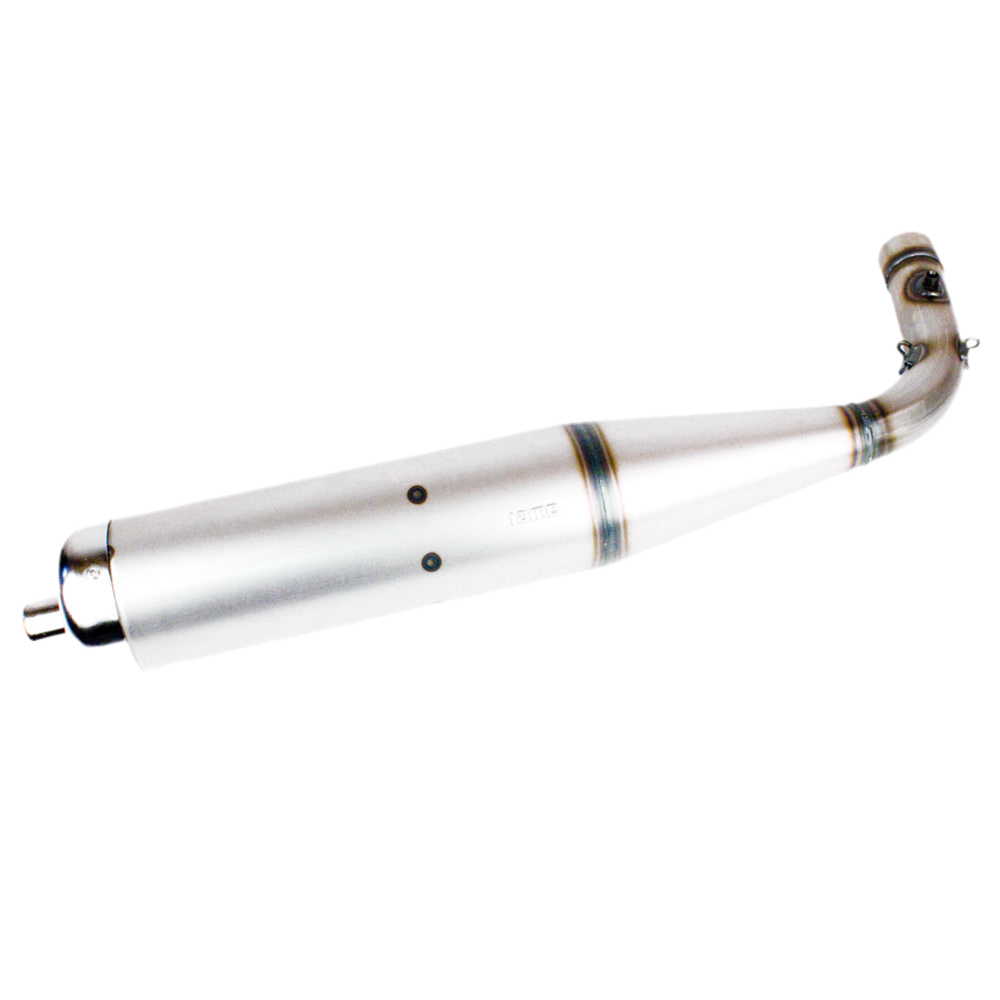

KA100 Exhaust Pipe
The KA100 pipe now includes a welded EGT bung from the factory. But read below to understand what's changed.
The bung can be prepped for use with the Big Nut EGT sensor style or the 5mm external thread small EGT sensor. The bung is made to handle either style. BUT the pipe is not ready out of the box for either EGT sensor.

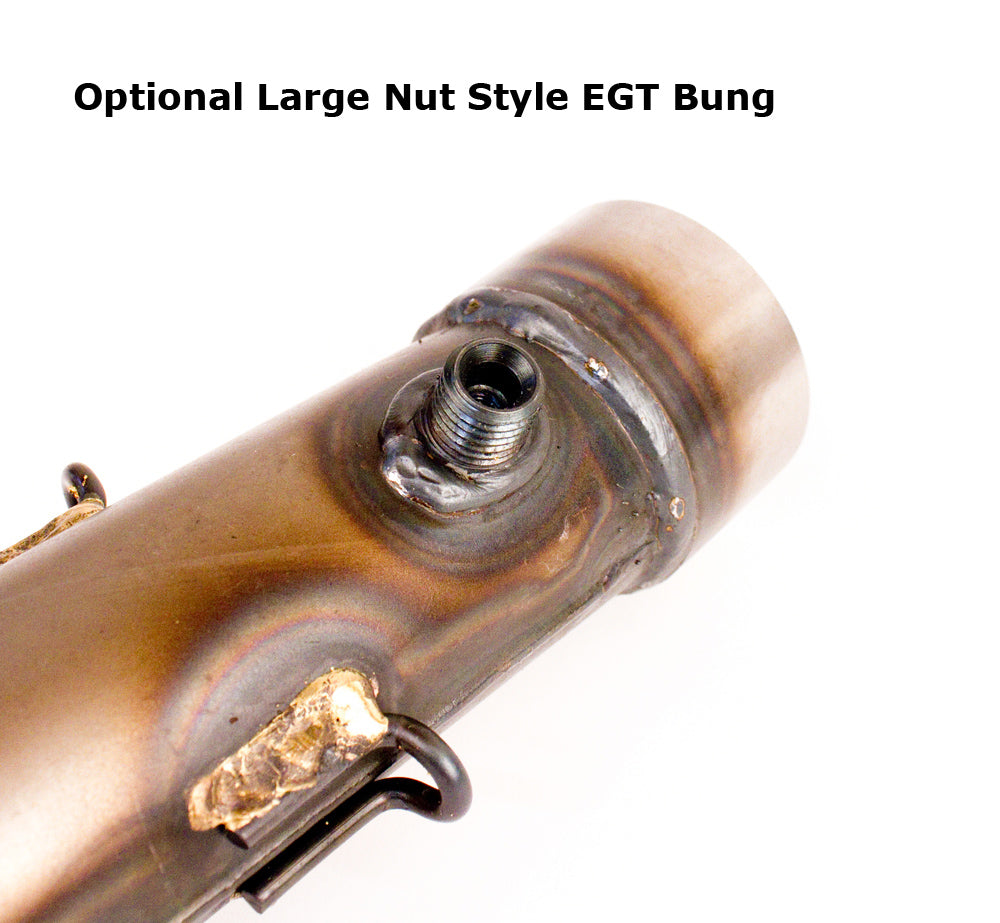

If you want to use the Big Nut Style EGT you will need to drill a small hole in the bottom of the pipe bung so the sensor can be inserted.

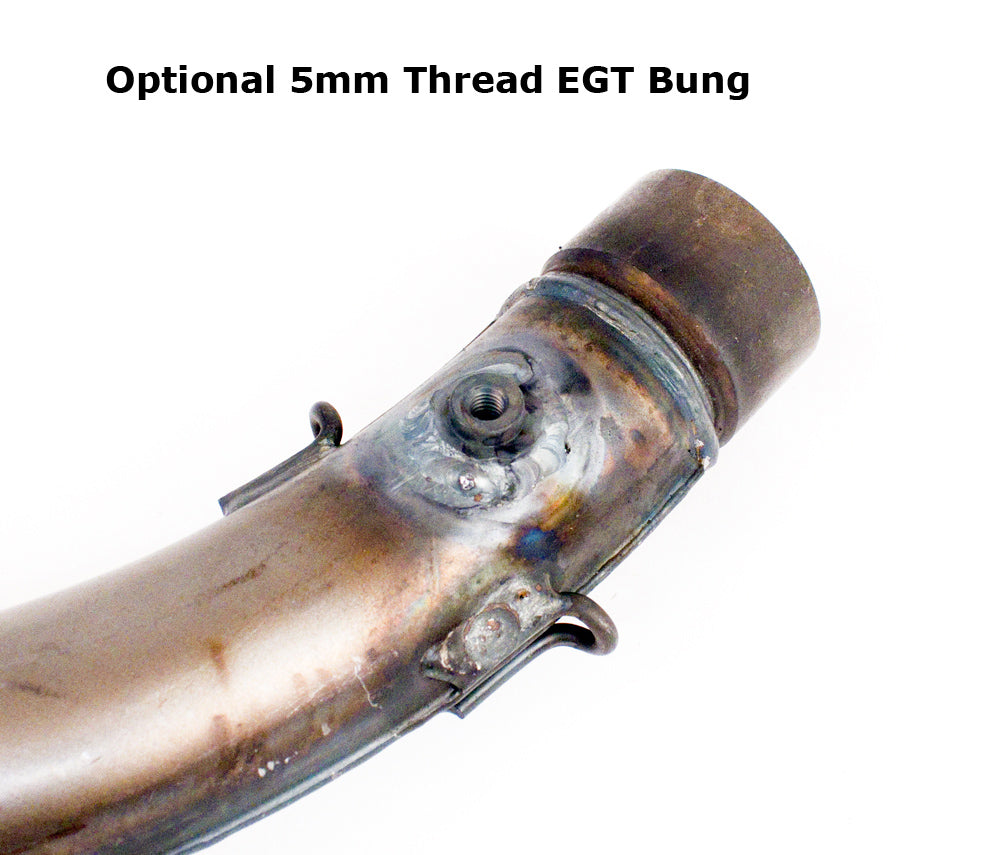

If you want to use the 5mm External Thread Style EGT sensor it requires grinding down or cutting down the EGT bung to the "flat" in the bung then drilling the center of the bung so the sensor can pass through, BUT not so big you remove the inner 5mm threads. Sometimes you need to run a 5mm tap through the hole to clean the threads after cutting and drilling.
In either case Comet can prep the bung for you if you wish then it will be ready for you when you receive it and you won't have to figure it out. Just select the option on the dropdown menu.
Due to the size of this item we have to charge a freight fee
$272.80 - $307.80
Collections: All Products, Eligible For Coupon, Engines, Exhaust, IAME KA100 Exhaust Parts, Gaskets, Products
Category: Brand_IAME, Categories_Engines, Categories_Exhaust, Model_IAME KA100, Type_Pipe
