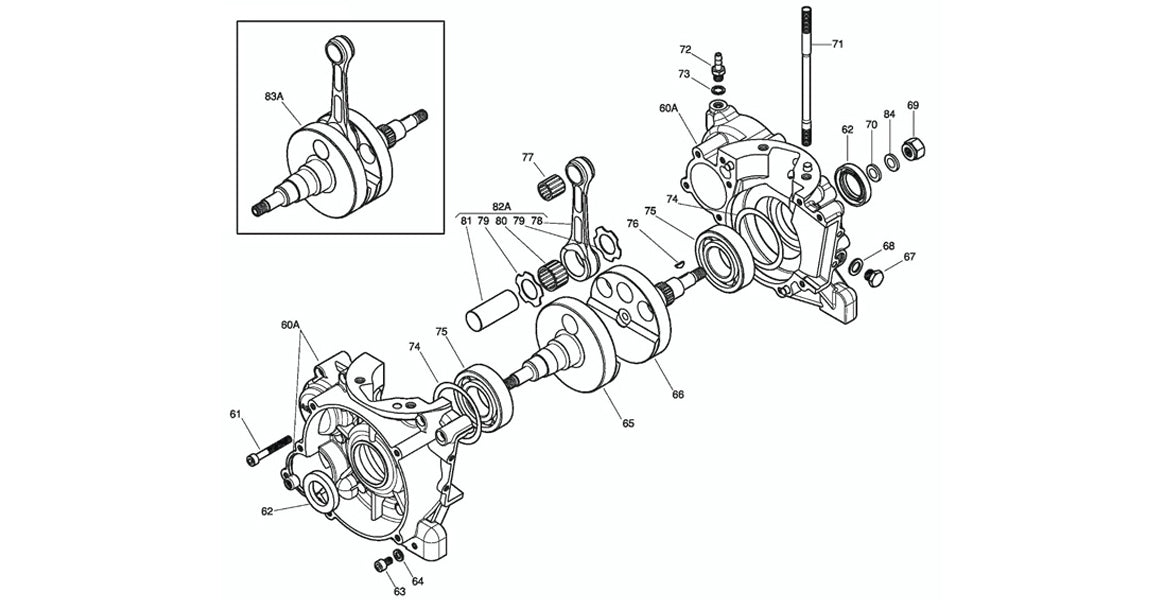

IAME X30 Crank, Rod & Case Parts, (60A) X30125485-C X30 Complete Crankcase, (61) X30 Crankcase Allen Bolts 6mmX45mm, (62) X30125425A X30 Mag/PTO Side Main Oil Seal, (65) X30125385 X30 PTO Crankshaft Half, (66) X30125390 X30 MAG Crankshaft Half, (67) IA-B-25840 X30 Temp Gauge Plug, Gear Oil Drain Plug, (68) IA-B-25845 X30 Temp Gauge Plug Gasket, (69) IA-00382 X30 Magneto Nut M10x1, (70) IA-00305-K IAME X30 Flat Washer M10 for Flywheel Magneto, (71) IA-B-25347 X30 Cylinder Stud Tie Rod 8mm x 153mm, (72) IA-D-95800 X30 Pressure Fitting, (73) IA-B-71805 X30 Pressure Fitting Copper Gasket, (74) X30125405 X30 Steel Main Bearing Shim 0.10, (74) X30125406 X30 Steel Main Bearing Shim 0.15, (75) X30125396A X30 Main Ball Bearing SKF 6206 for Crank Shaft, (75) New Style X30125397 2021 X30 SKF Roller Main Bearing, (76) IA-10375 X30 Magneto Shaft End Key 10x3.7x2.5, (77) IA-E-10440 X30 Top Rod Wrist Pin Bearing, (79) X30125436 X30 Silver Bronze Bottom Thrust Washer, (80) X30125431 X30 Big End Cage Bearing, (81) X30125450 X30 Lower Rod Bearing Crankpin 20x48.8, (82A) IFC-50100-C X30 Connecting Rod Assembly, (83A) ENC00101K X30 Crankshaft Assembly with 2021 New Style Roller Bearings, (83A) X30125617 X30 Crankshaft Assembly, (84) 00342-K IAME X30 Wavey Locking Washer for Magneto Flywheel M10
