Briggs LO206 Carburetor Slide Setting "No-Go" Tech Style Gauges

Briggs LO206 Carburetor Slide Tech Tool

To get maximum legal performance you need to make sure the slide opens to the maximum opening but not so much that you get DQ'ed.

These Go-No-Go gauges are .005" smaller than the maximum on one end and right on the maximum on the other end. Just a few thousandths makes a big difference.

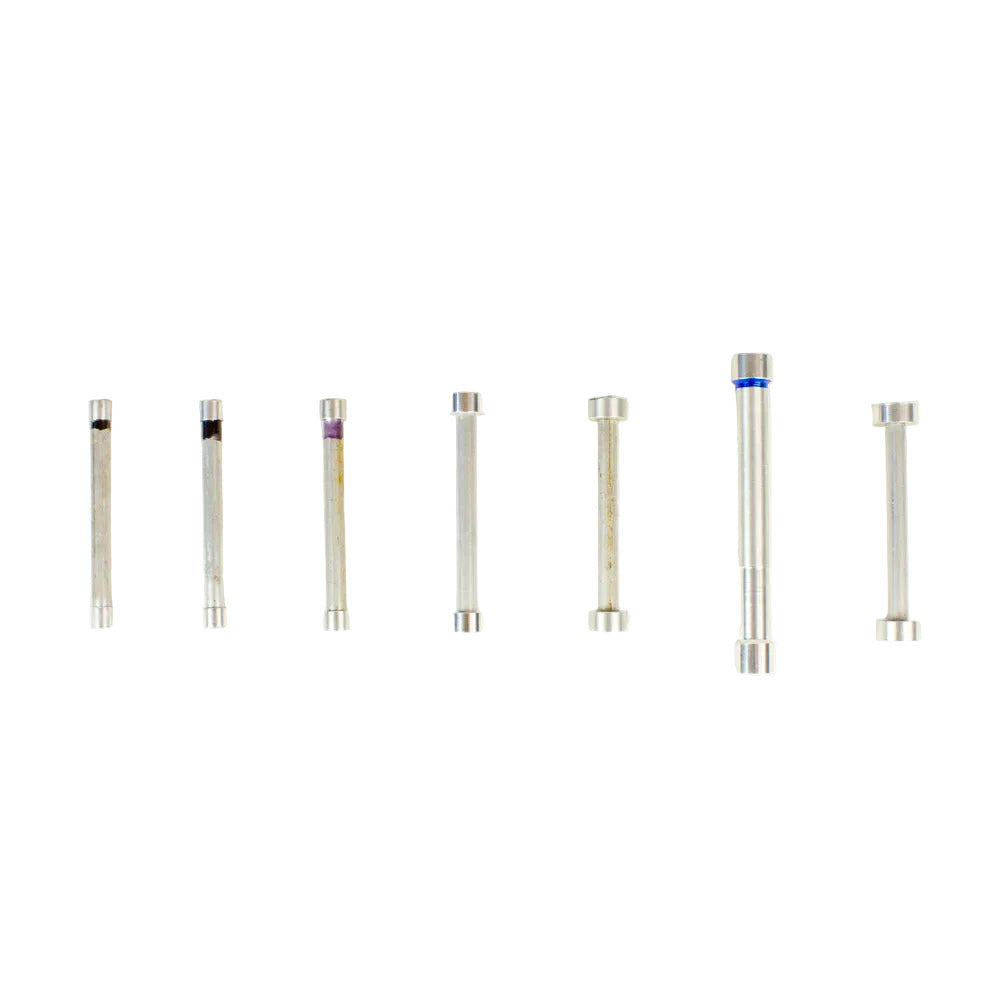

Tool measurements on each end -

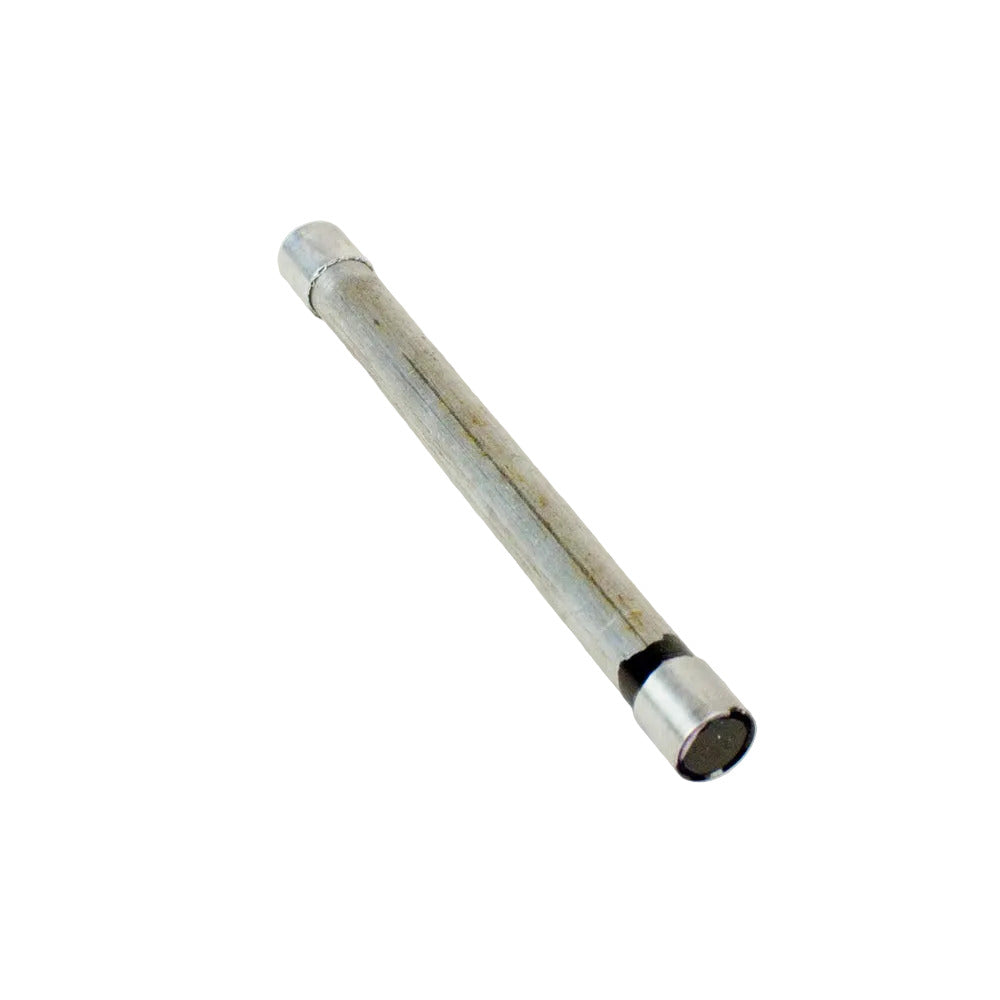

Black Slide Tool - .280" / .285" (Kid Kart)

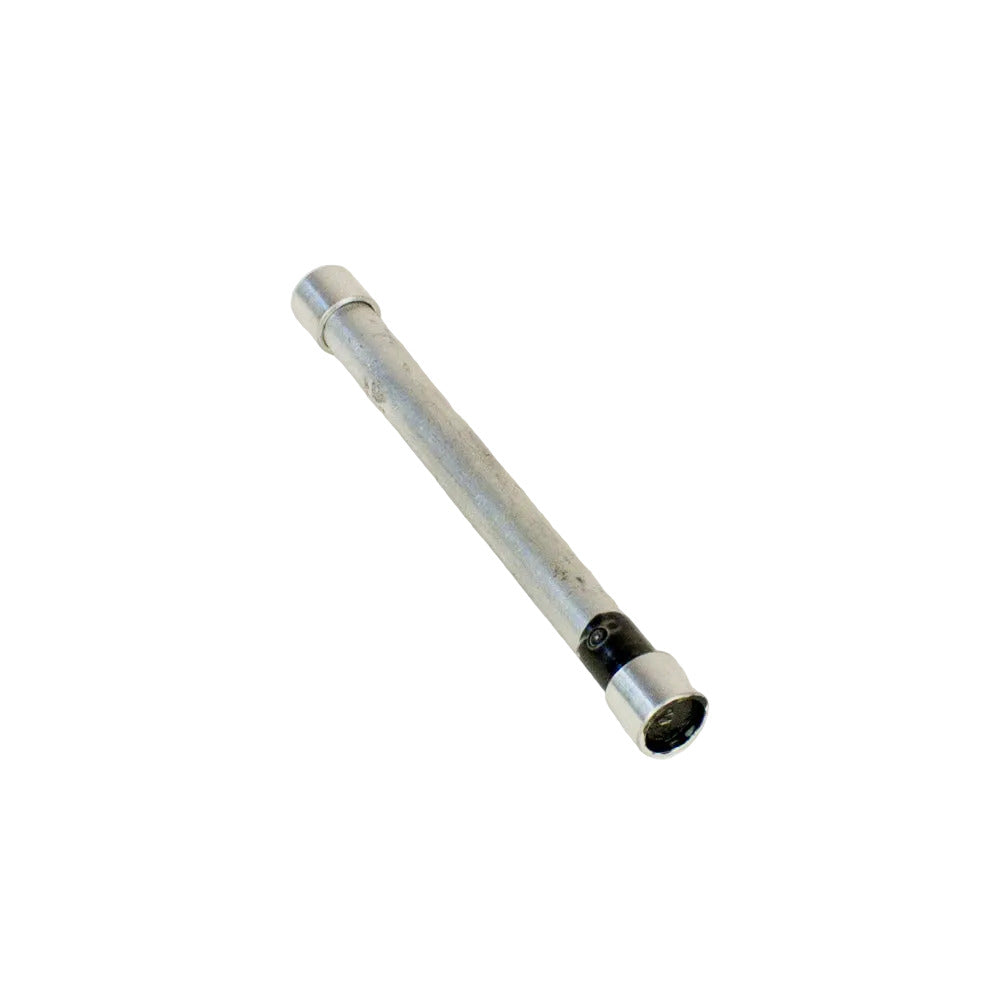

Black Slide Tool - .305" / .310" (Kart Kart)

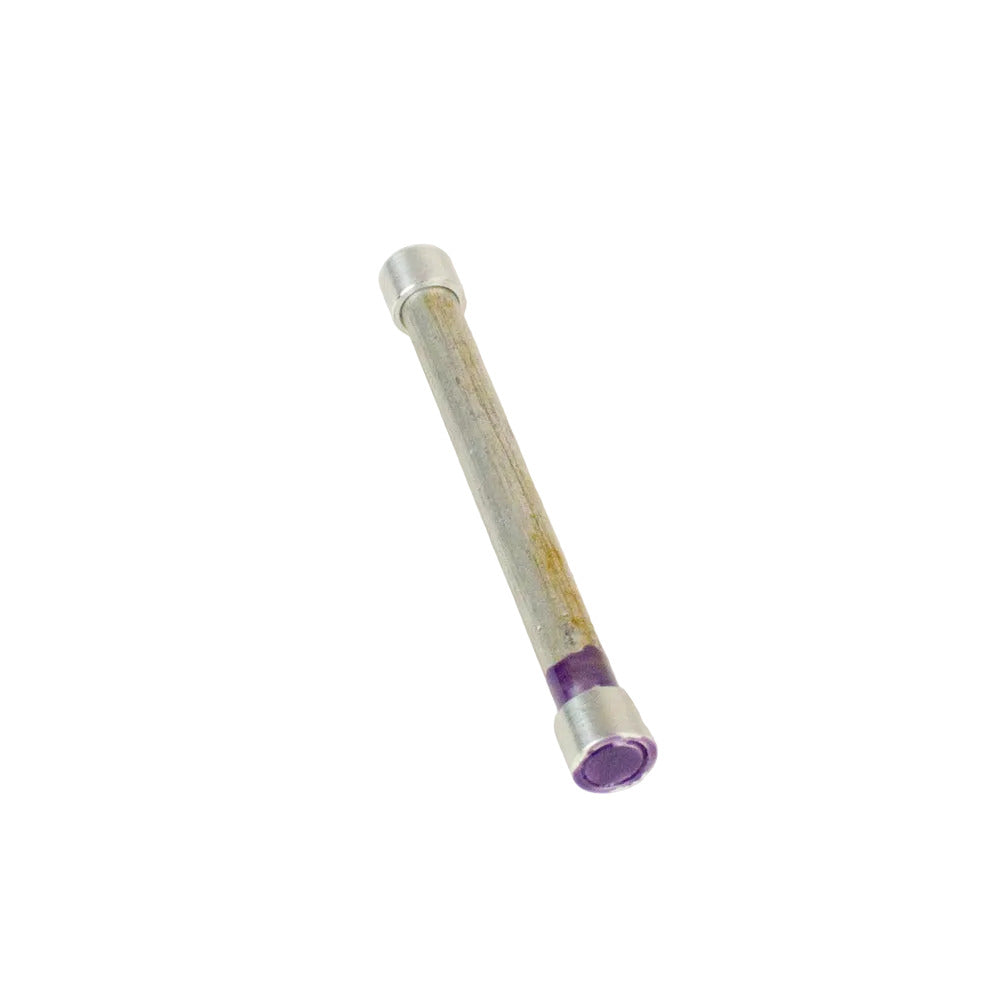

Purple Slide Tool - .337" / .342"

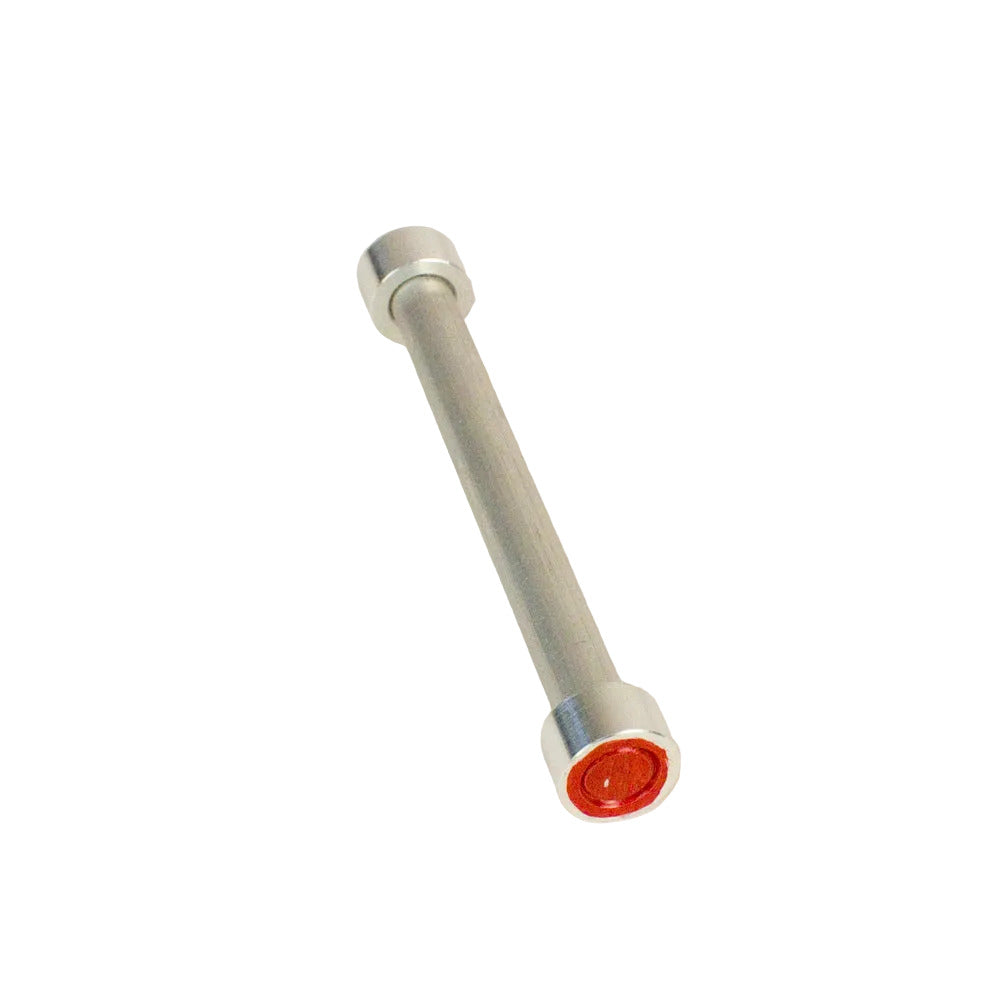

Red Slide Tool - .435" / .440"

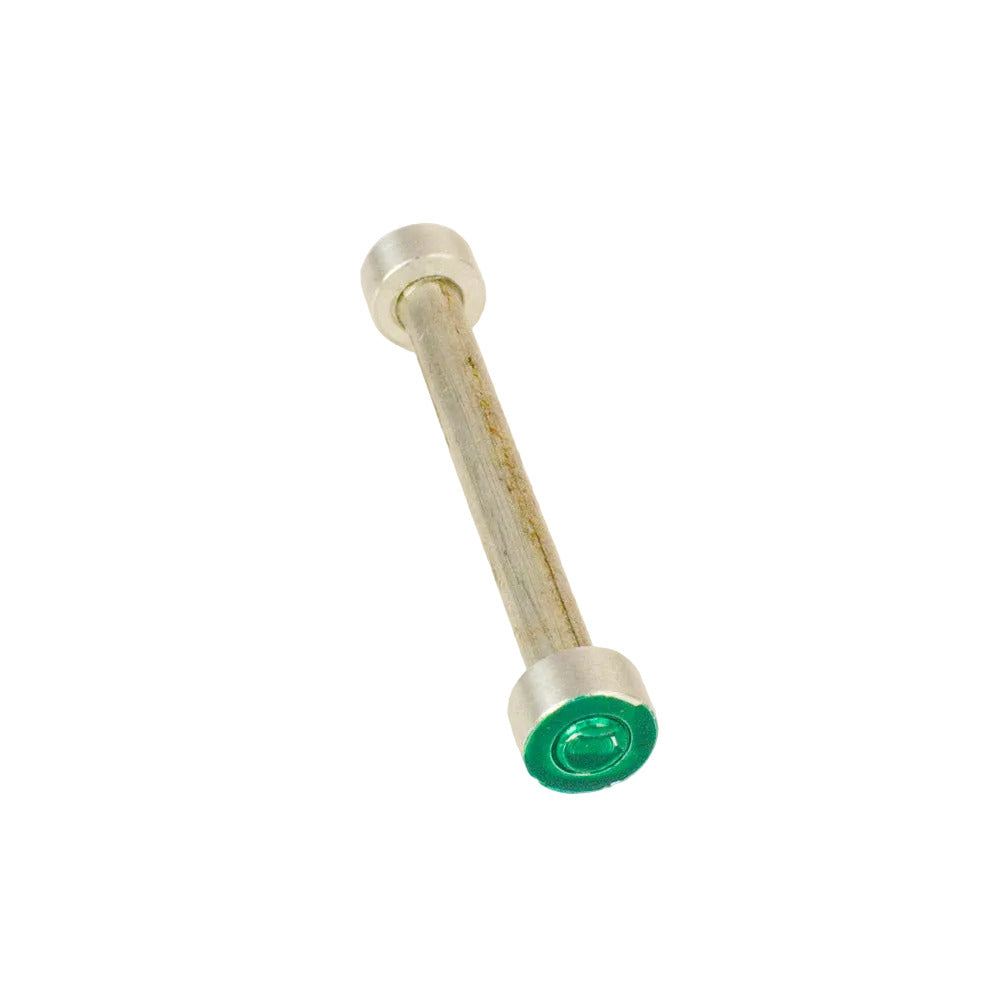

Green Slide Tool - .485" / .490"

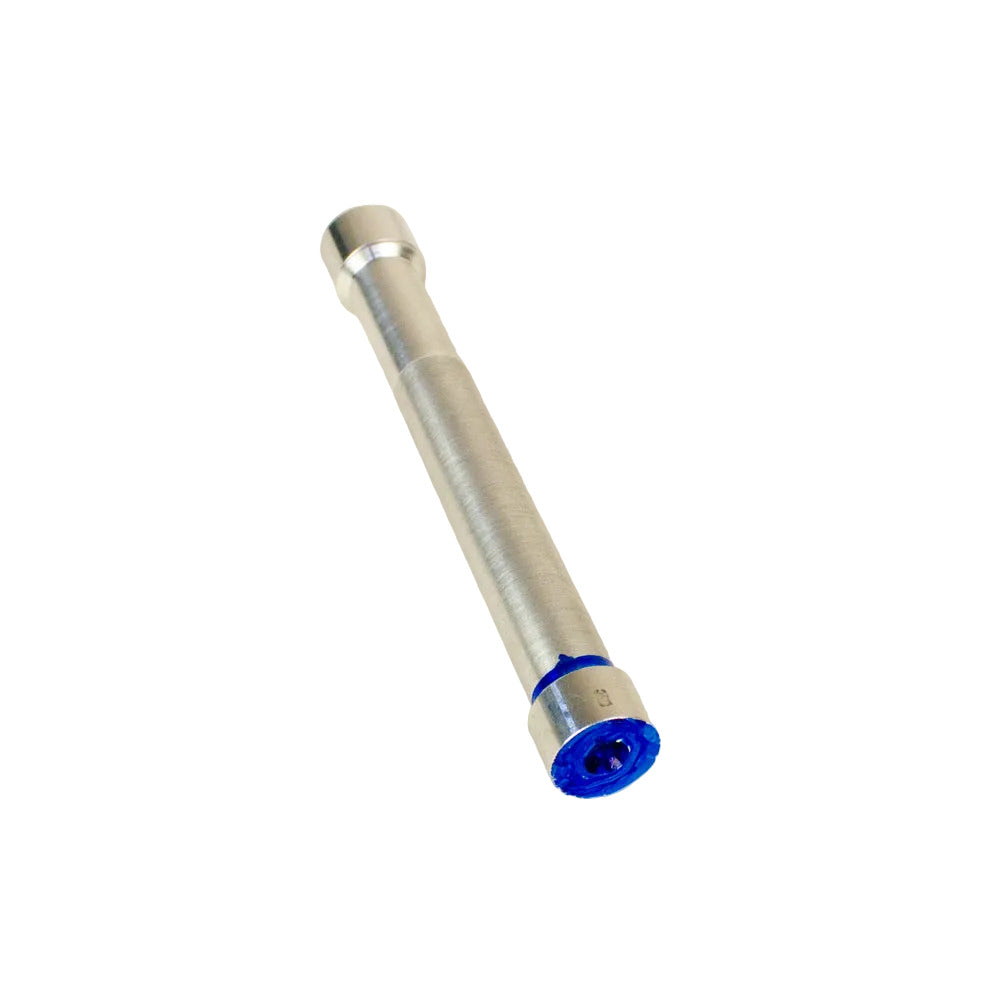

Blue Slide Tool - .515" / .520"

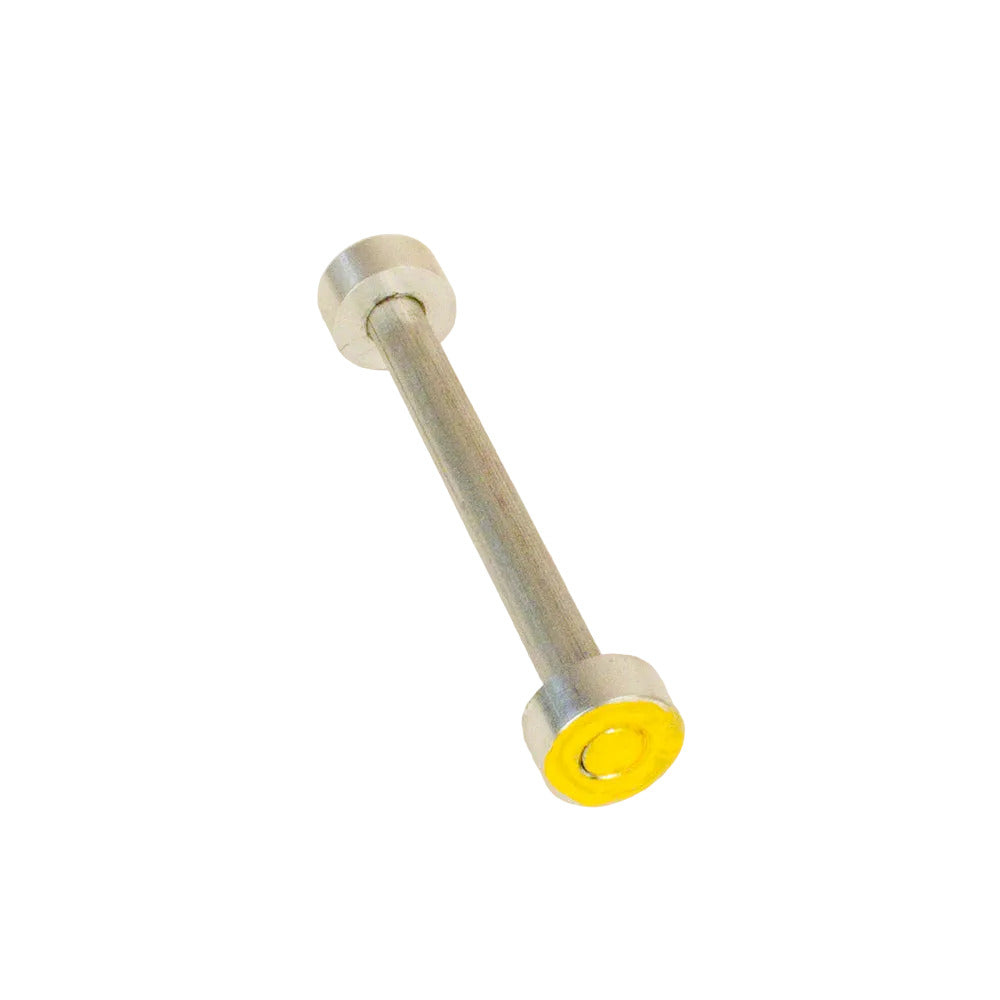

Yellow Slide Tool - .565" / .570"

Check your tool, all measurements are approximate, these are racer tools, not calibrated tech tools
