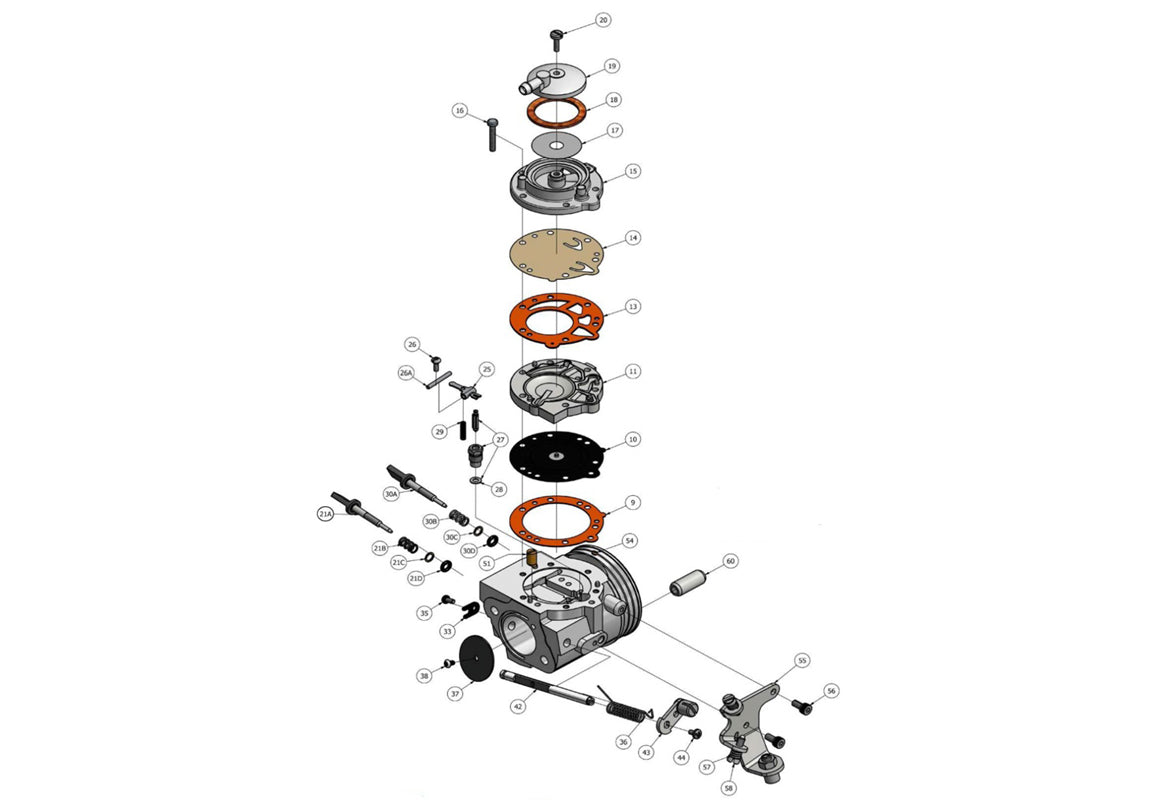

IAME KA100 HW-33A Carburetor Parts


Products

HW 33A IAME KA100 Stock Carburetor
KA100 HW-33A Replacement Carb Parts
$289.95
HW 33A KA100 Carburetor Blueprinted by Comet Racing Engines
Comet continually track tests and bench flows carbs looking for even the smallest advantage! Each Comet blueprinted carburetor is maximized for the highest performance in the class that it is built for.

All Comet KA100 Blueprinted Carbs are Dynoed for Maximum Performance and Function - Most Comet Blueprinted Carburetors are built to order, please allow extra time for shipment

USPKS, WKA and SKUSA Legal

This item is not eligible for free shipping
$435.00
DG-3HW IAME KA100 Carburetor Diaphragm and Gasket Kit
KA100 Carburetor Diaphragm Rebuild Kit

*KA100 Carb Kits have been shipping with Clear or Tan Pumpers*
$14.95
RK-6HW IAME KA100 Complete Carburetor Rebuild Kit
Complete Carb Diaphragm Rebuild Kit, Includes Fulcrum Arm, Inlet Needle, Seat

*KA100 Carb Kits have been shipping with Clear or Tan Pumpers*
$32.95
9. 16-B406 IAME KA100 Diaphragm Carburetor Gasket
KA100 HW-33A Replacement Carb Parts
$0.80
10. 237-600 IAME KA100 Carburetor Diaphragm Only
KA100 HW-33A Replacement Carb Parts
$4.91
11. 91A-275 IAME KA100 Carburetor Diaphragm Cover (Metal Plate)
KA100 HW-33A Replacement Carb Parts
$5.95
13. 16-B407 IAME KA100 Fuel Pump Carburetor Gasket
KA100 HW-33A Replacement Carb Parts
$2.47
14. 237-223 IAME KA100 Fuel Pump Carburetor Diaphragm
KA 100 Fuel Pump Diaphragm
$4.35
15. 141-89 IAME KA100 Aluminum Fuel Pump Body Plate
KA 100 Fuel Pump Aluminum Plate
$9.67
16. 15C-51 IAME KA100 Fuel Pump Carburetor Body Screw
Torx Head Screw for Carburetor Plates
$0.91
17. 95-170 IAME KA100 Carburetor Fuel Strainer Screen
Carburetor Mesh Fuel Screen
$0.92
18. 16-B205 IAME KA100 Carburetor Fuel Strainer Cover Cork Gasket
Cork Gasket for Carburetor Top
$0.66
19. 91-A251 IAME KA100 Carburetor Plastic Fuel Strainer Cover
Plastic Carburetor Fuel Inlet Top
$3.85
20. 15-B313 IAME KA100 Carburetor Fuel Strainer Cover Retaining Screw
Plastic Carb Top Retaining Bolt
$0.95
21A. 43-1029 IAME KA100 Carburetor Idle Mixture Screw (Low Speed Adjuster Needle)
Low Speed Adjustable Needle
$10.16
21B. 24-B449 IAME KA100 Idle Mixture Screw Spring (Spring for Low Speed Adjustable Needle)
Spring for the Low Speed Needle
$0.59
21C. 78A-256 IAME KA100 Idle Mixture Screw Washer (Washer for Low Speed Adjustable Needle)
Washer for Low Speed Adjustable Needle
$0.95
21D. 44-361 IAME KA100 Idle Mixture Screw Packing (O-Ring for Low Speed Needle)
Rubber O-Ring for Low Speed Needle
$1.04
25. 155A-27 IAME KA100 Carburetor Inlet Control Lever (Fulcrum Arm)
Fulcrum Arm
$0.80
26. 15-B329 IAME KA100 Carburetor Fulcrum Lever Screw
Retaining Bolt for Fulcrum Arm Pivot Pin
$0.69
26A. 32-79 IAME KA100 Carburetor Fulcrum Lever Pivot Pin
Fulcrum Arm Steel Pivot Pin
$0.59
27. 233-721P IAME KA100 Carburetor Inlet Needle & Seat with Washer
Inlet Needle and Seat with Seat Washer
$15.95
28. 16-B199 IAME KA100 Carburetor Inlet Seat Gasket (Copper Washer)
Copper Washer for Bottom of Inlet Seat
$0.53
29. 24-B299 IAME KA100 Carburetor Inlet Tension Spring
Fulcrum Arm Spring
$1.65
30A. 43-1030 IAME KA100 High Speed Mixture Screw (High Speed Adjustable Needle)
High Speed Adjustable Needle
$10.16
30B. 24B-449 IAME KA100 High Spring Mixture Screw Spring (High Speed Needle Adjuster Spring)
High Speed Needle Adjuster Spring
$0.59
30C. 78A-256 IAME KA100 High Speed Mixture Screw Washer (Washer for High Speed Needle)
Washer for High Speed Adjustable Needle
$0.95
30D. 44-361 IAME KA100 High Speed Mixture Screw Packing (O-Ring for High Speed Needle)
O-Ring for High Speed Adjustable Needle
$1.04
33. 29-224 IAME KA100 Carburetor Throttle Shaft Retainer Clip
Throttle Shaft Steel Retainer Clip
$0.98
35. 15-C19 IAME KA100 Carburetor Throttle Shaft Clip Retaining Screw
Retaining Bolt for Carburetor Throttle Shaft Steel Retaining Plate
$0.89
36. 24-B381 IAME KA100 Carburetor Shaft Throttle Return Spring
Throttle Shaft Return Spring
$1.50
37. 14-A118 IAME KA100 Carburetor Throttle Shutter Butterfly
Brass Carburetor Butterfly
$19.11
38. 15-C20 IAME KA100 Carburetor Throttle Shutter Butterfly Screw
Retaining Bolt for Brass Butterfly
$0.87
42. 13-B216 IAME KA100 Carburetor Throttle Shaft Only
Carburetor Throttle Shaft Only
$15.50
43. 12-1220 IAME KA100 Carburetor Throttle Lever Assembly with Throttle Cable Swivel
Throttle Lever Assembly with Throttle Cable Swivel, Shaft Sold Separately
$17.20
44. 15-C52 IAME KA100 Carburetor Throttle Lever Retaining Screw
Throttle Lever Retaining Plate Bolt
$0.84
51. 363-318 IAME KA100 Carburetor Brass Idle Nozzle
Brass Fuel Nozzle
$11.00
55. 136-562 IAME KA100 Carburetor Steel Cable Bracket
Steel Cable Bracket for Throttle Lever Stop Bolts
$20.18
56. 15-C67 IAME KA100 Carburetor Cable Bracket Retaining Screw
Retaining Bolt for Carburetor Cable Bracket
$0.87
57. 15-C9 IAME KA100 Carburetor Throttle Cable Limiter Screw
Adjustable Throttle Cable Bracket Stop Bolt
$2.25
58. 24-B131 IAME KA100 Carburetor Throttle Cable Limiter Spring
Adjustable Throttle Cable Bracket Stop Bolt Tension Spring
$0.80
60. 81-377 IAME KA100 Carburetor Long Barrell Inner Hex Mounting Nut
Long Cylindrical Nut with Inner Hex for Bolting Carburetor to the Carb Manifold
$3.00
IA-B35521 IAME KA100 Inline Throttle Cable Return Spring
Inline Throttle Cable Return Spring, Goes Between Throttle Bracket and Carburetor Swivel
$4.50
